F-94

F-94

Introduction

The F-94 Nozzle is available in a wide range of spray angles for many diverse applications. A unique spirally milled core or “disc” produces a high velocity spinning action that gives a solid cone distribution of medium atomization. The tip has a straight machine thread for use with a male or female adaptor with NPT connections. This Nozzle is particularly successful for dust suppression, industrial washers, coal washing and the production of carbon black.

Details

  • Material: Standard in 416 Stainless Steel. Also available in 304 and 316 Stainless Steel.
  • Spray Angle: 15°, 30°, 45°, 60°, 80° at 100 PSI.
  • Pipe Connection: 1/4" NPT
  • Drawing, Capacity:



    • F-94
Tags:
Data sheet
Published in Carbon Black Nozzles

Related items

  • H-530
    October 23, 2016

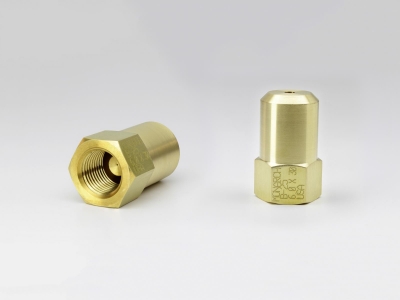

    The H-530 is a simple Nozzle which is a variation of the nonclog principle. Nozzle consists of two parts, the Body which contains the inlet pipe connection and the orifice; and a Cap which forms the bottom of the Swirl Chamber. The solid cone spray is uniformly distributed over the entire area of coverage. Typically used where a right angle connection is required for gas scrubbing, rinsing, washing, quenching and dust control.

  • H-837 solid jet nozzles
    October 18, 2016

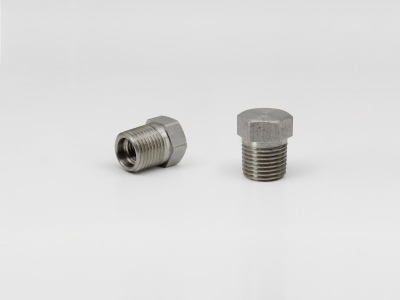

    The H-837 Nozzles produce a solid unbroken stream with a defined jet length before breakup of the liquid occurs. Useful for cleaning and cutting operations. To maximize stream length, mounting close to tees should be avoided as the turbulence produced from “turning the corner” disrupts smooth stream.
