H-837 solid jet nozzles

H-837 solid jet nozzles

Introduction

The H-837 Nozzles produce a solid unbroken stream with a defined jet length before breakup of the liquid occurs. Useful for cleaning and cutting operations. To maximize stream length, mounting close to tees should be avoided as the turbulence produced from “turning the corner” disrupts smooth stream.

Details

  • Material: 416 SS, 303 SS, 304 SS and 316 SS
  • Spray Angle: 0°
  • Pipe Connection: 1/8″ and 1/4″ NPT.
  • Drawing, Capacity:



    • H-837
Tags:
Data sheet
Published in Water Nozzles

Related items

  • H-530
    October 23, 2016

    The H-530 is a simple Nozzle which is a variation of the nonclog principle. Nozzle consists of two parts, the Body which contains the inlet pipe connection and the orifice; and a Cap which forms the bottom of the Swirl Chamber. The solid cone spray is uniformly distributed over the entire area of coverage. Typically used where a right angle connection is required for gas scrubbing, rinsing, washing, quenching and dust control.

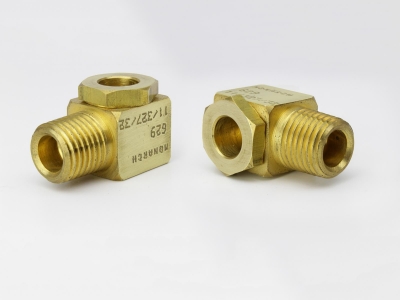

  • 629 / 631 non-clog
